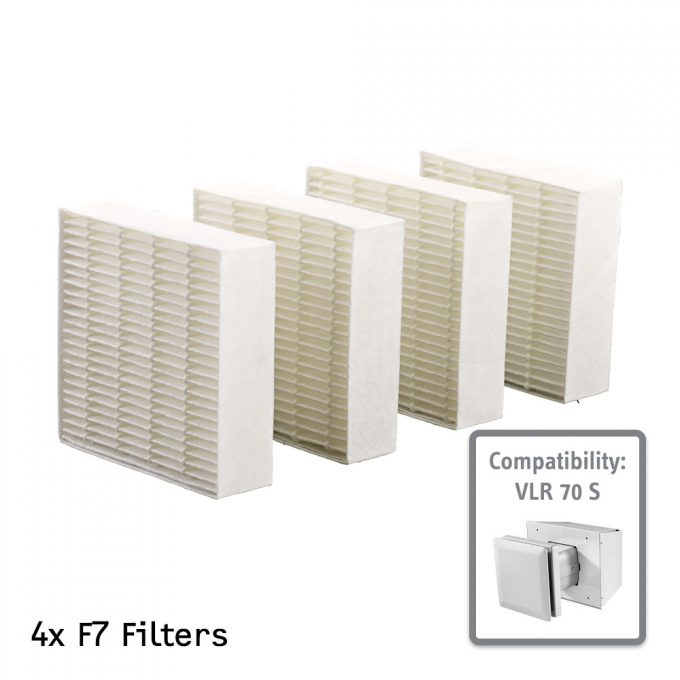

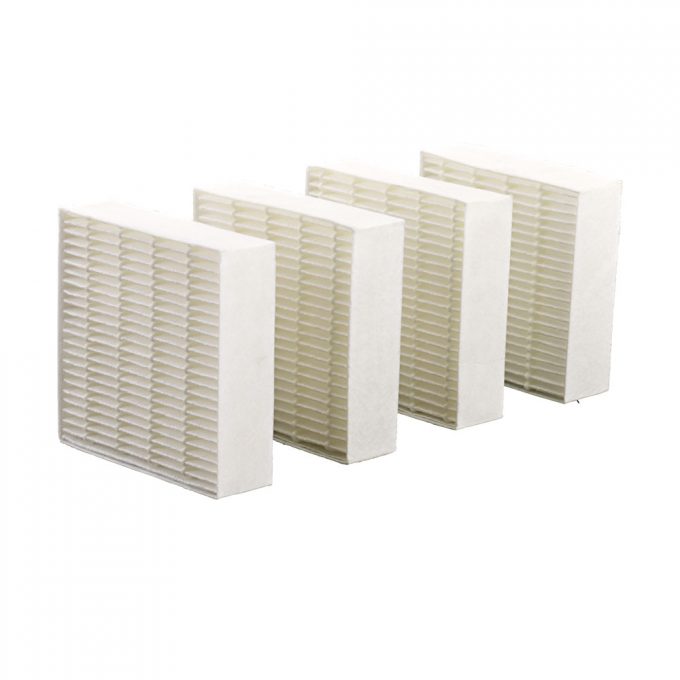

4x F7 Air Filters for STIEBEL ELTRON VLR 70 S

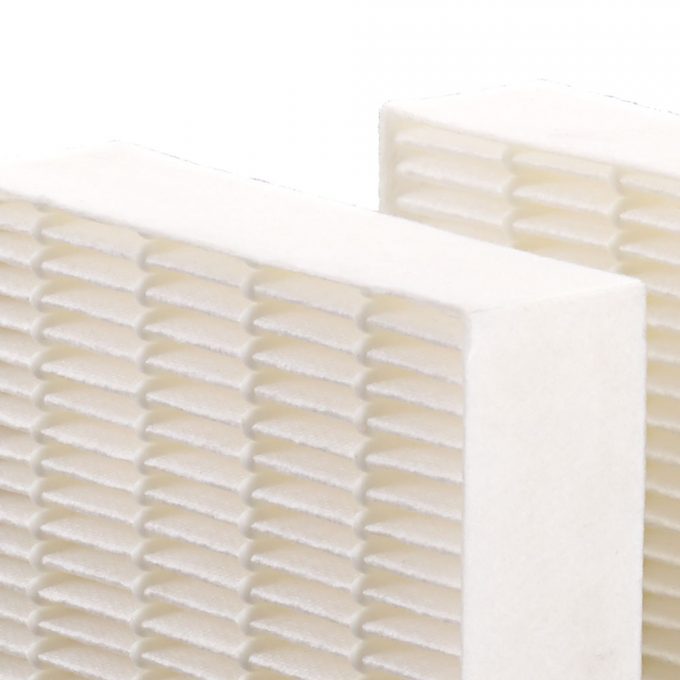

Replacement filter mats for the internal filter of the VLR 70 S decentralised ventilation units, made from unbreakable polyester fibers with partially progressive structure, thermally bonded, temperature-resistant to 100 °C.

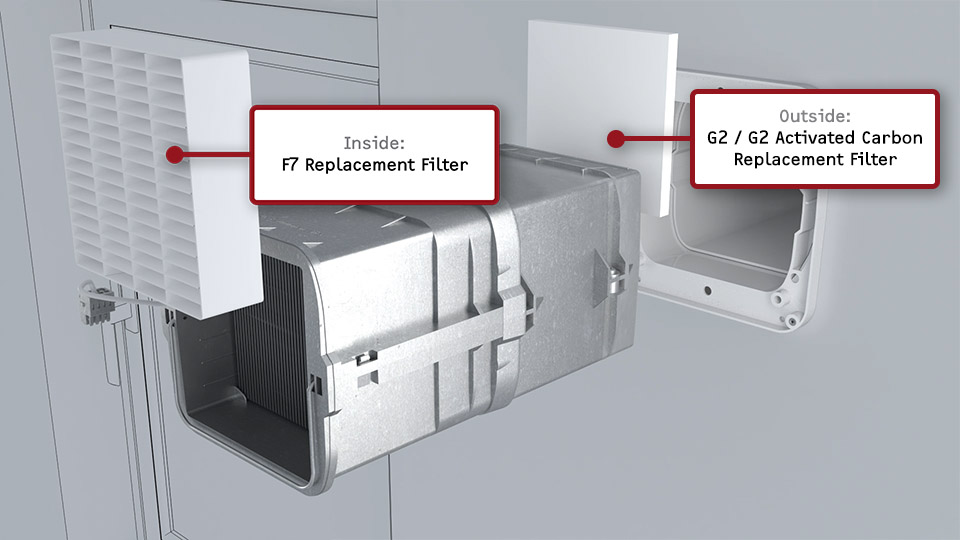

The VLR 70 S decentralised ventilation system contains two filters, both which need to be replaced twice a year or as needed. Inside filter, which sits closes to the house indoors, and the outside filter, which sits closest to the outside of the house.
Air Filter Compatibility
These filters are compatible with the following ventilation units:
VLR 70 S (200002)
Air Filter Classifications – What each type of filter removes from the air
The below table outlines the different performance and properties of each air filter class.
The current class if air filter is highlighted in red.
|Filter Group||Air Filtration Level||Particle Size||What is filtered out?|
|Air filters for coarse dust particles||
G2 + Active Carbon
|≥ 10 µm||
|Air filters for medium-sized dust particles||M5||≥ 1 µm||
|Air filters for fine dust particles||F7||≥ 1 µm||
Replacing Filters In The VLR 70 S: Instructional Video
The below video outlines how to change the inside and outside filters on your STIEBEL ELTRON VLR 70 S decentralied ventilation system. If you have questions or need additional support, please contact us.
How often should I replace the air filter in my ventilation unit?
Air filters in ventilation units should be replaced with a frequency of at least twice a year – or as required.
Visually inspecting the filtration medium (pads/filters) in your ventilation appliance is an easy process. Periodically check your air filters. Upon inspection, if filters are visually discolored they should be replaced.
Clogged or old filters which are overdue for replacement can affect the performance and air flow rate of your ventilation device. Maintaining fresh filters will ensure the highest level of air filtration for the health and well being of occupants.
Ventilation units from STIEBEL ELTRON will indicate when it’s time to change you filters with an icon in the controller display.
