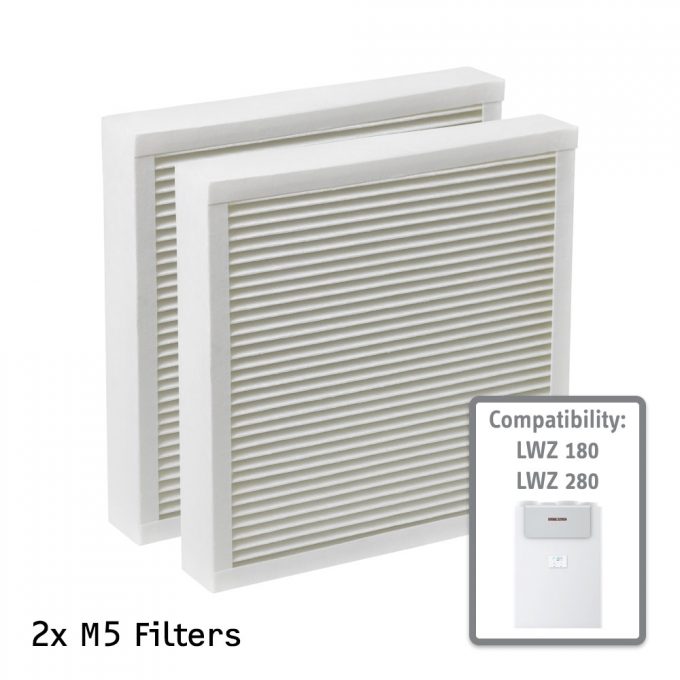

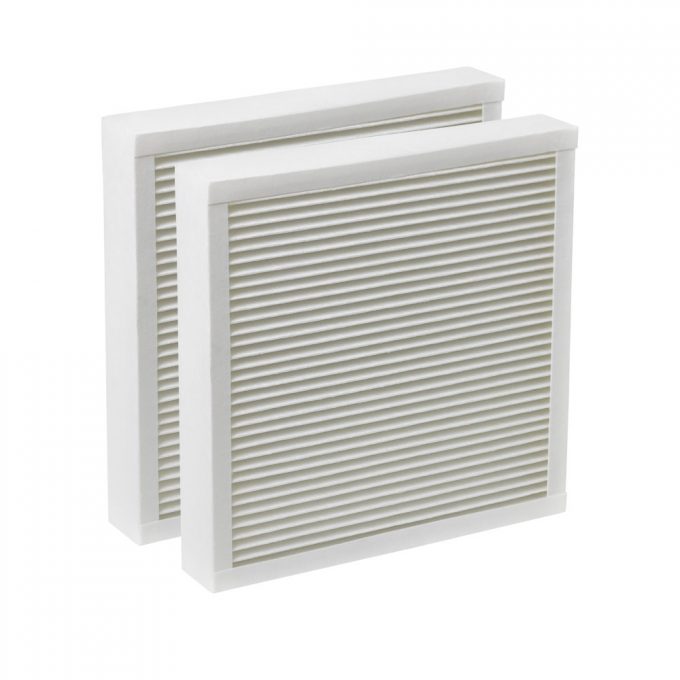

2x M5 Air Filters for STIEBEL ELTRON LWZ 180 and LWZ 280

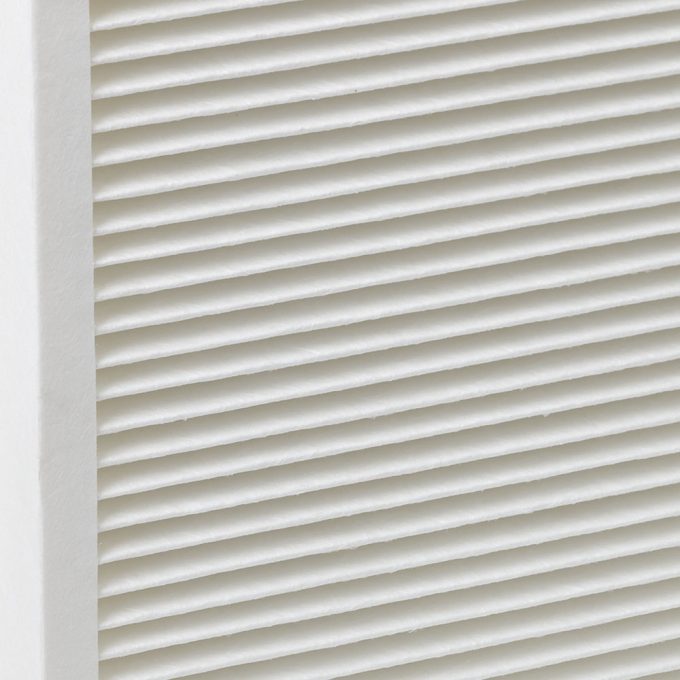

Replacement filter cassettes for supply air, made from unbreakable polyester fibres with partially progressive structure, thermally bonded, temperature-resistant to 100 °C, Z-folded inside a robust frame made from moisture-resistant cardboard; with pull tab at the front.
Air Filter Compatibility
These filters are compatible with the following ventilation units:
LWZ 180 (232361)
LWZ 280 (232362)
LWZ 180 Enthalpy (236646)
LWZ 280 Enthalpy (236647)
Air Filter Classifications – What each type of filter removes from the air
The below table outlines the different performance and properties of each air filter class.
The current class if air filter is highlighted in red.
|Filter Group||Air Filtration Level||Particle Size||What is filtered out?|
|Air filters for coarse dust particles||
|≥ 10 µm||
|Air filters for medium-sized dust particles||M5||≥ 1 µm||
|Air filters for fine dust particles||F7||≥ 1 µm||
|Air filters for fine dust particles||F9||≥ 1 µm||
How often should I replace the air filter in my ventilation unit?
Air filters in ventilation units should be replaced with a frequency of at least twice a year – or as required.
Visually inspecting the filtration medium (pads/filters) in your ventilation appliance is an easy process. Periodically check your air filters. Upon inspection, if filters are visually discolored they should be replaced.
Clogged or old filters which are overdue for replacement can affect the performance and air flow rate of your ventilation device. Maintaining fresh filters will ensure the highest level of air filtration for the health and well being of occupants.
Ventilation units from STIEBEL ELTRON will indicate when it’s time to change you filters with an icon in the controller display.
